Calibrate the optical path of the red indicator light

Calibrate the optical path of the red indicator light

1. Tools you need to prepare

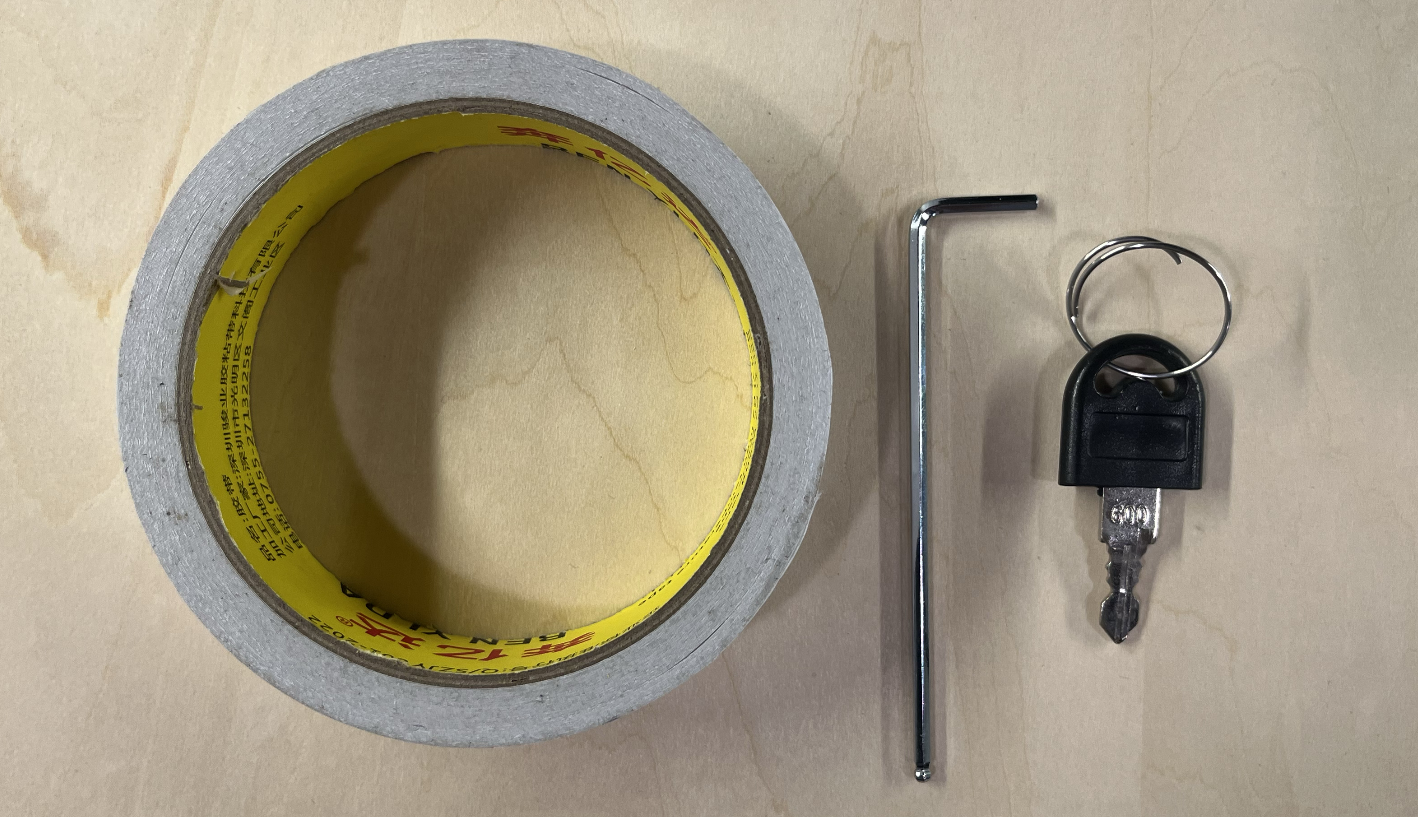

M2.5 hexagon socket screwdriver*1, double-sided tape*1, Equipment door cover key*1

2. Preparations before calibration

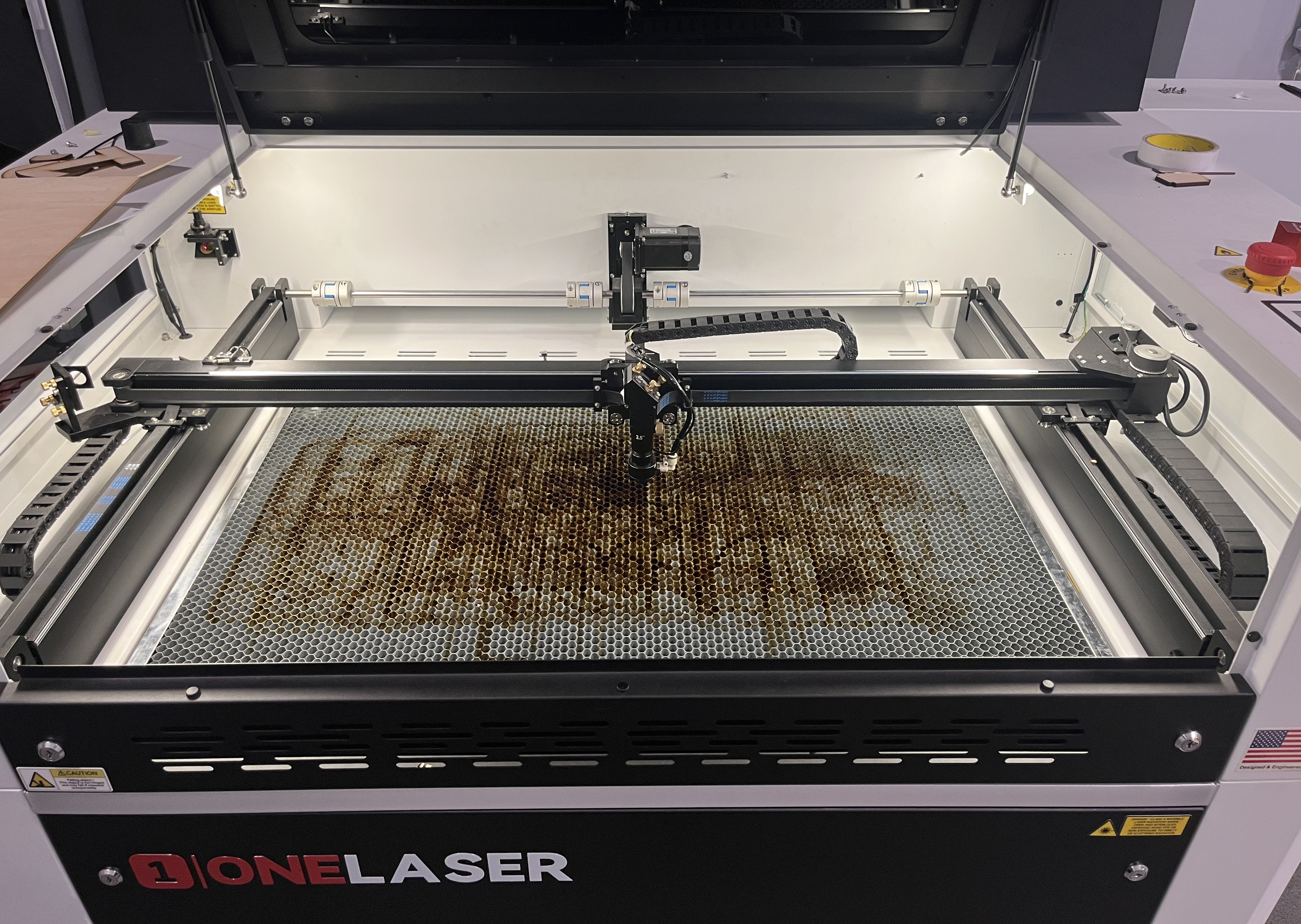

2.1 Turn on the equipment and move the laser head to the center position of the platform.

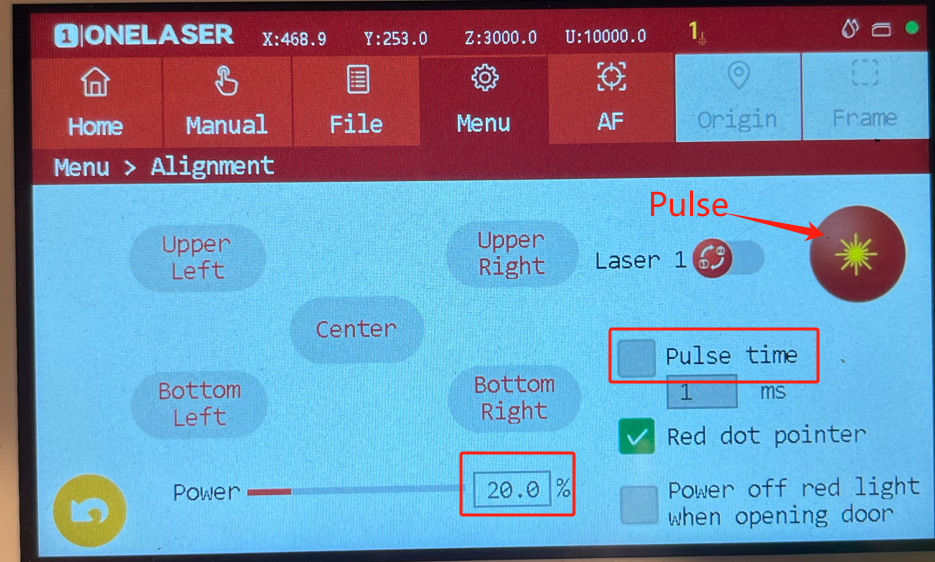

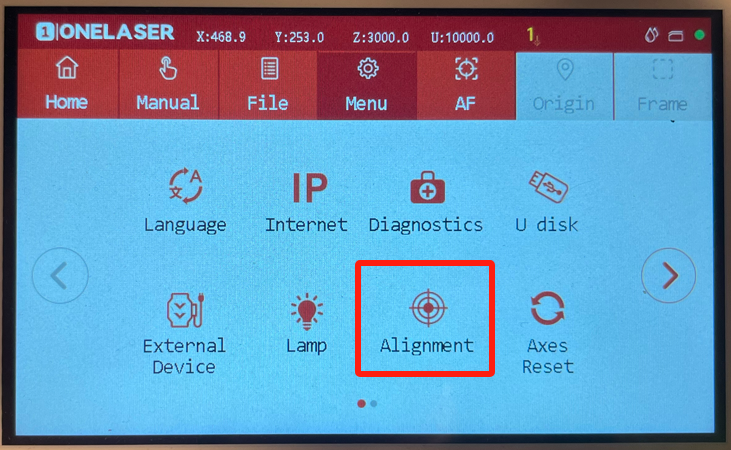

2.2 Click Menu → Alignment → Uncheck Pulse time → Set Power to 20%.

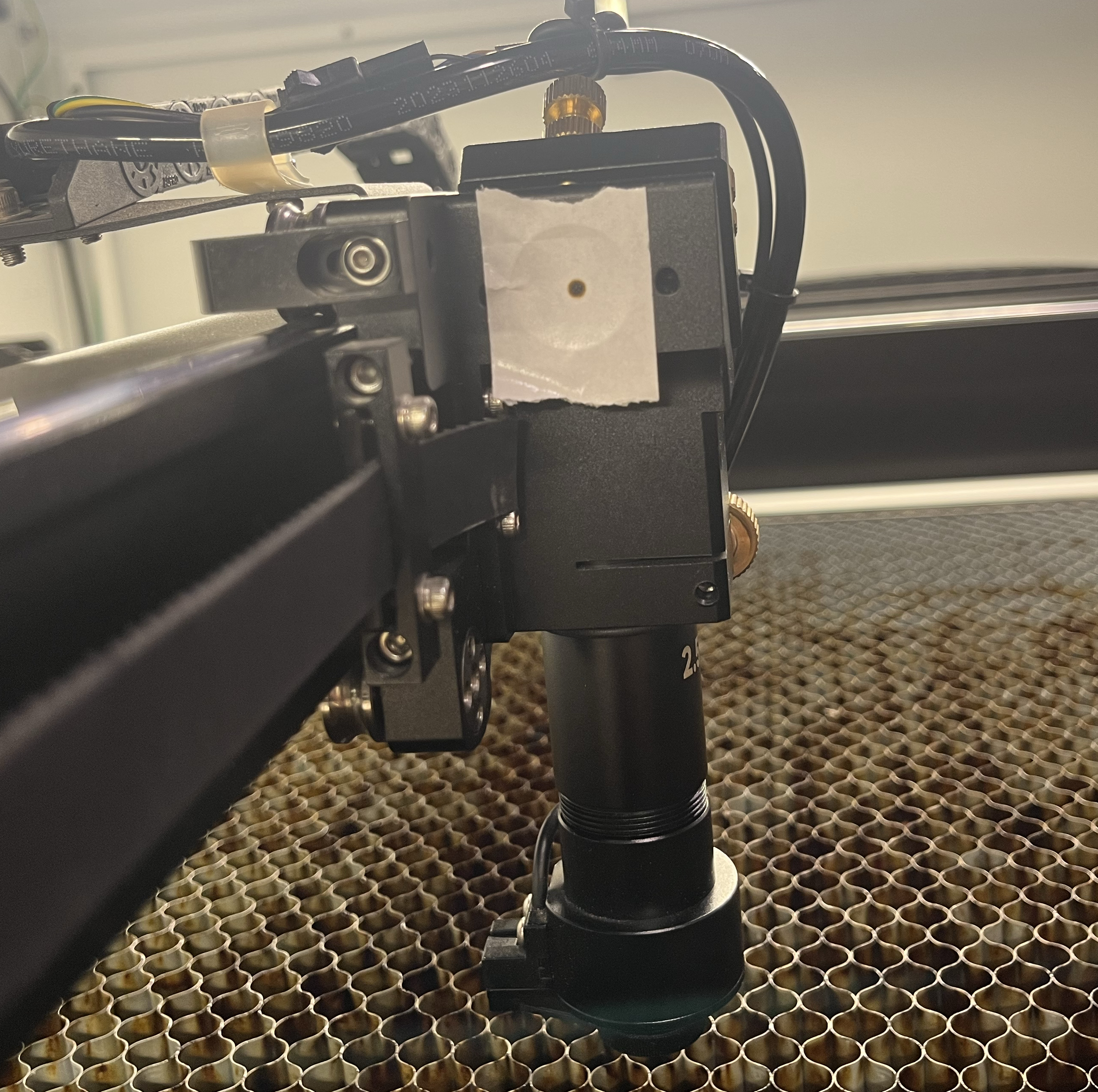

2.3  Take a piece of double-sided tape and stick it on the left side of the laser head, then press and hold the “Pulse” button (for about 0.5 seconds) to make a spot on the double-sided tape.


3. Calibrate the red light path

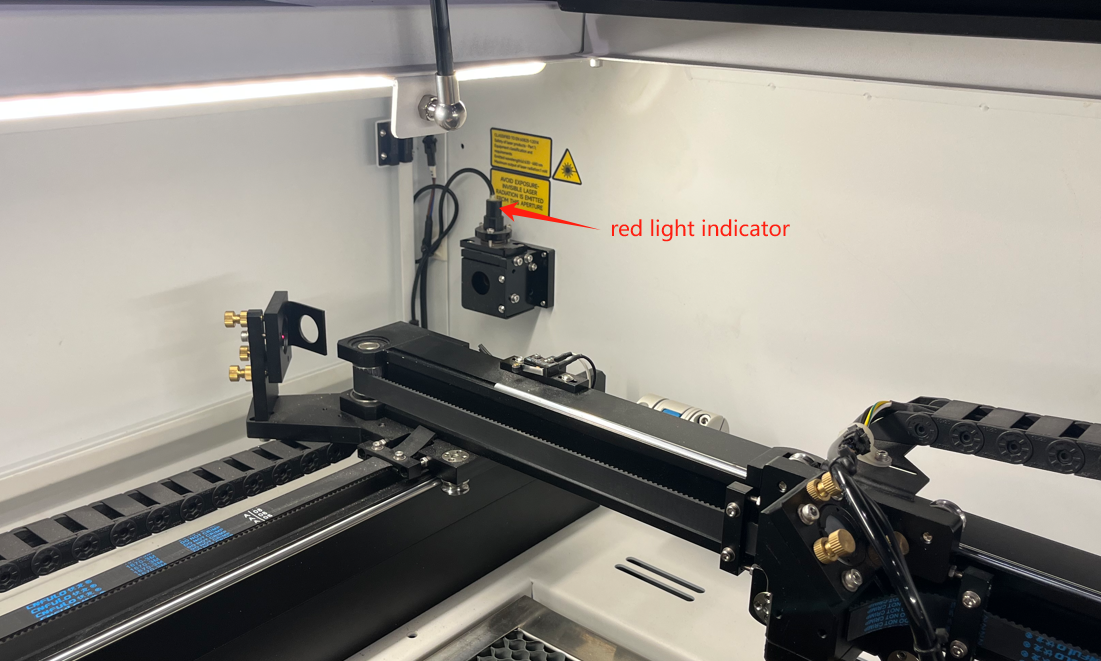

3.1 The red light indicator is located at the upper left corner of the platform. You need to use the Equipment door cover key to open the upper left door cover of the device.

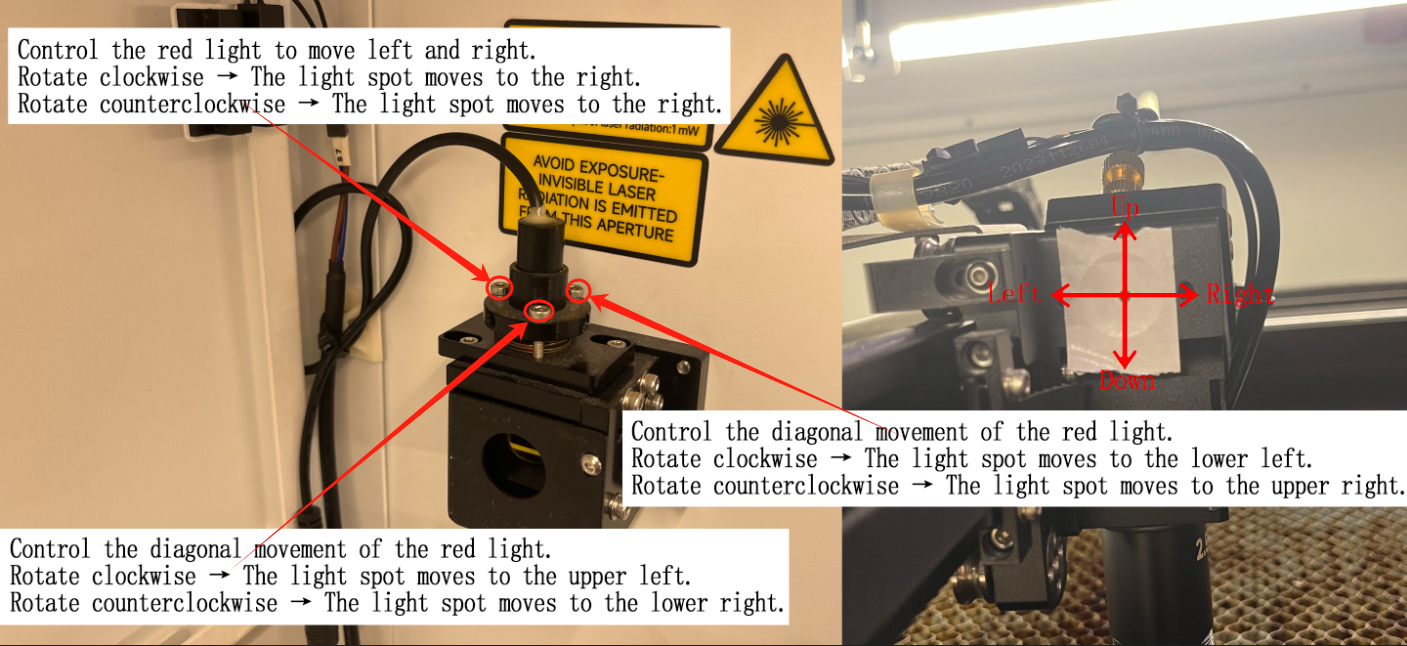

3.2 Use a hex screwdriver to rotate the adjustment screw shown in the figure to correct the red light path.

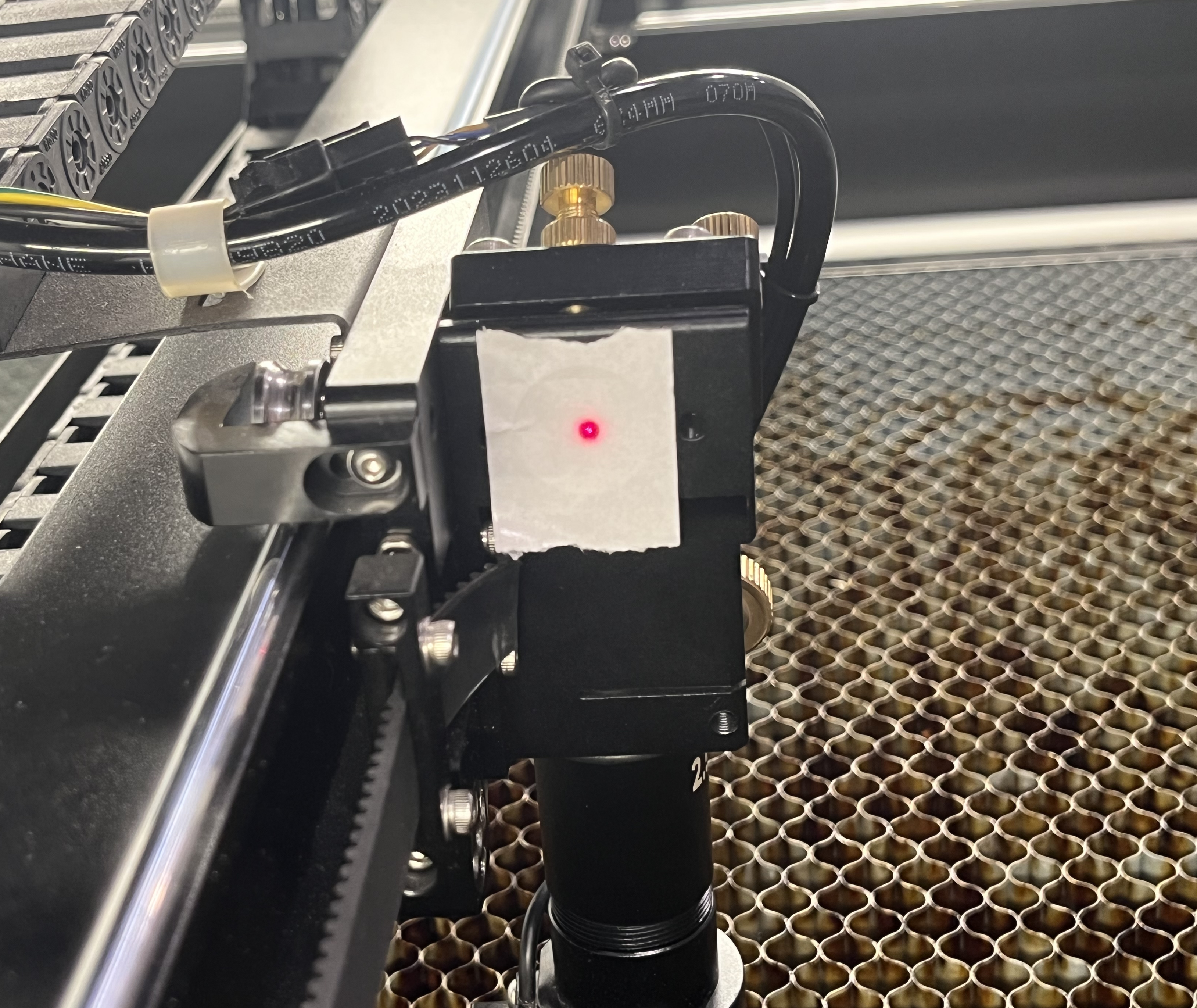

3.3 When the red light and the light spot are completely aligned, the calibration process is complete.
