Drawing dimensions do not match actual dimensions
Issue Description:
In the actual machining process, if you find that the machined dimensions do not match the drawing dimensions, for example, the drawing requires the machining of a 100mm x 100mm square, but the actual machined dimensions are not so, then it is likely to be due to the incorrect setting of the motor's step parameter. To solve this problem, you can follow these steps
RDworksV8 software, high-precision ruler
How to operate
1.Start the device, then start theRDWorksV8 software and connect to the device.

2. Draw a rectangle with dimensions of 300mm × 200mm and process the graphic.
3. Measure the actual dimensions of the X-axis (length direction) and Y-axis (width direction) of the processed rectangle using an accurate measuring tool.

Note: If the dimensions of the rectangle do not correspond to the dimensions of the drawing, do the following

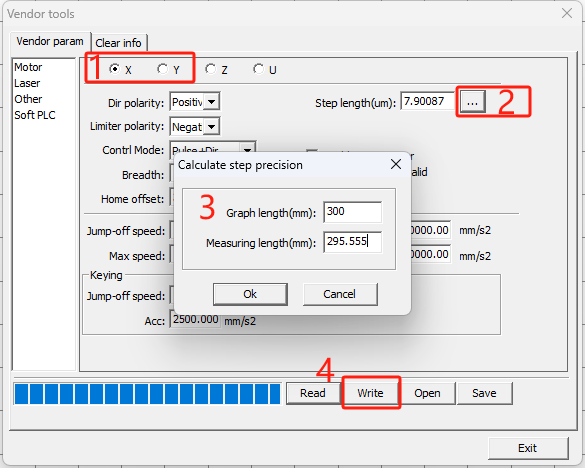

4. Click File>>vendor settings>>Enter the password: RD8888 to enter the manufacturer's parameter settings>>Select “Motor”>>Click “Read”.
5. After reading the parameters, click “Mark 1” and select the axial parameter (X-axis or Y-axis) to be adjusted. If the actual dimensions of both X-axis and Y-axis do not meet the requirements, it is necessary to calibrate the two axes separately.
- Graphic length:Enter the dimensions of the drawing
- Measurement length: input the actual measurement size.
- Click “OK” and “Write ” when finished.
6. After completing the setup, processing a 300mm × 200mm rectangle, and again measure his actual size.

Note: If the size of the rectangle and the drawing size or inconsistent, it is necessary to repeat the above operation until the actual size and the drawing size of the same
