NOTE:

Contact the manufacturer's technician for the latest version of the firmware programme.The HMI firmware (i.e. panel firmware) must be updated before updating the control motherboard. During the firmware update process, please ensure that the device remains switched on to avoid update failure.

I. Preparations

Computer *1；USB stick *1 (you can use the one that came with the machine)；RD Works（Debugging software）

II. Steps for upgrading

1. Panel firmware upgrade

Note: It takes about 10 minutes to update the panel firmware and 1 minute to update the control motherboard firmware.

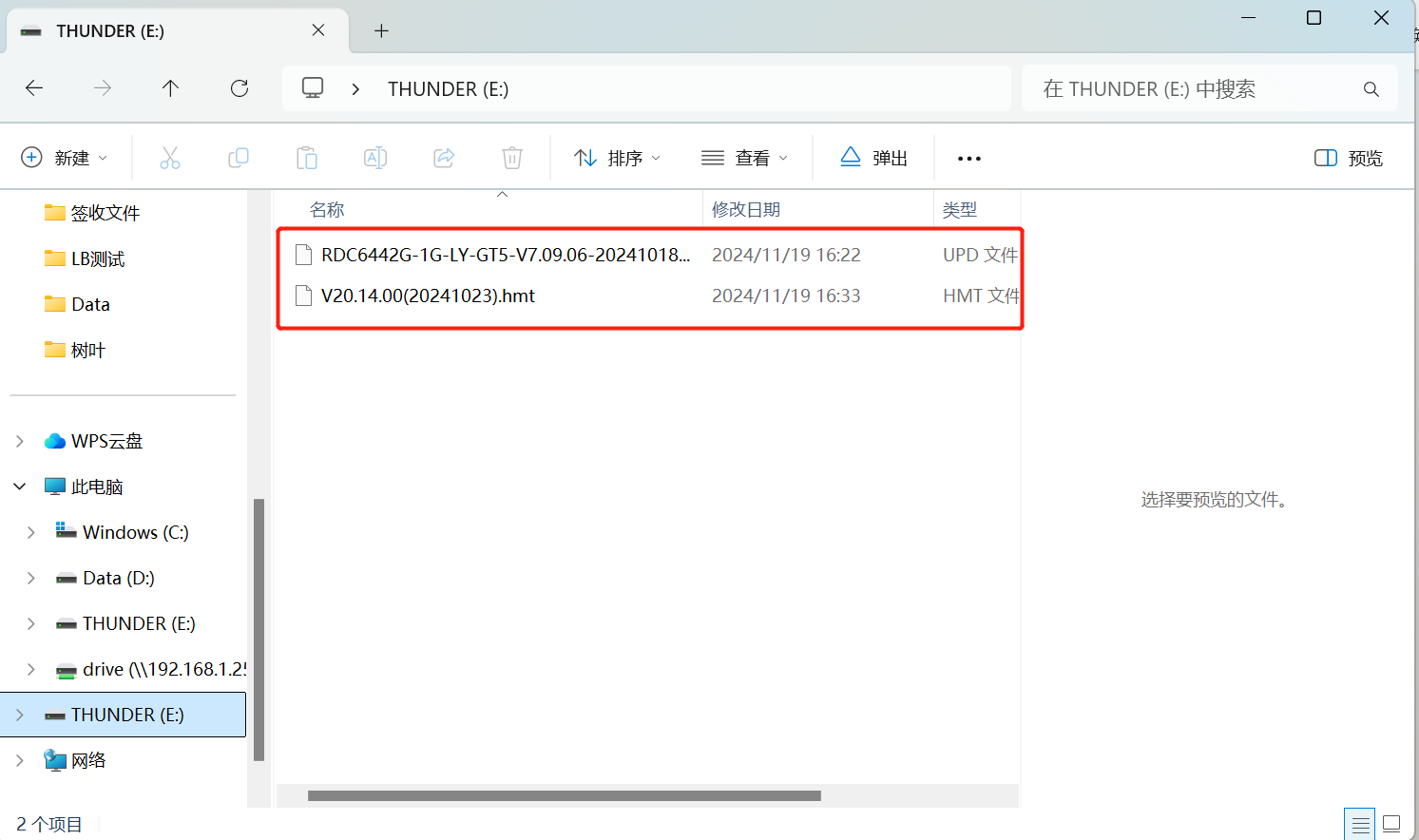

A.First save the firmware programme to the USB stick

Note: In order to ensure that the device can correctly recognise the USB flash drive, please use a USB flash drive with a memory capacity of less than 128GB.

Meanwhile, the firmware file to be upgraded should be placed in the root directory of the USB flash drive so that the device can read and install it smoothly.


A. Insert a USB stick into the device


B. Click Menu→U disk→HmI


C. Wait for the update → click close when the update is complete


After updating the panel firmware, please do not reboot the device, please directly update the control motherboard firmware

2.Control motherboard firmware upgrade

A.Direct update on the panel

a.First save the firmware programme to the USB stick

Note: In order to ensure that the device can correctly identify the USB flash drive, please use a USB flash drive with a memory capacity of less than 128GB.

Meanwhile, the firmware file to be upgraded should be placed in the root directory of the USB flash drive so that the device can read and install it smoothly.

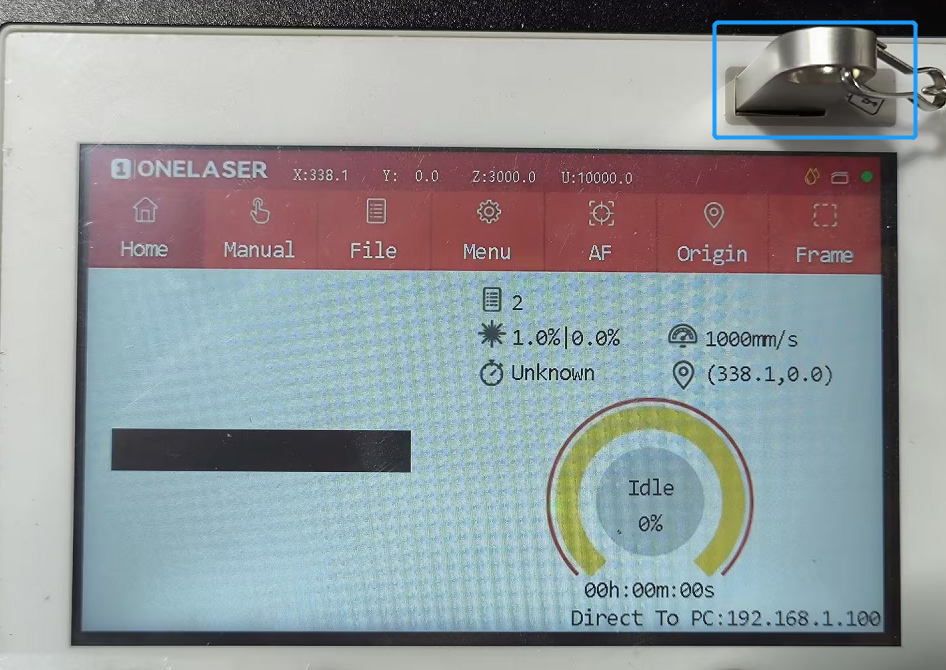

b. Insert the USB stick into the device

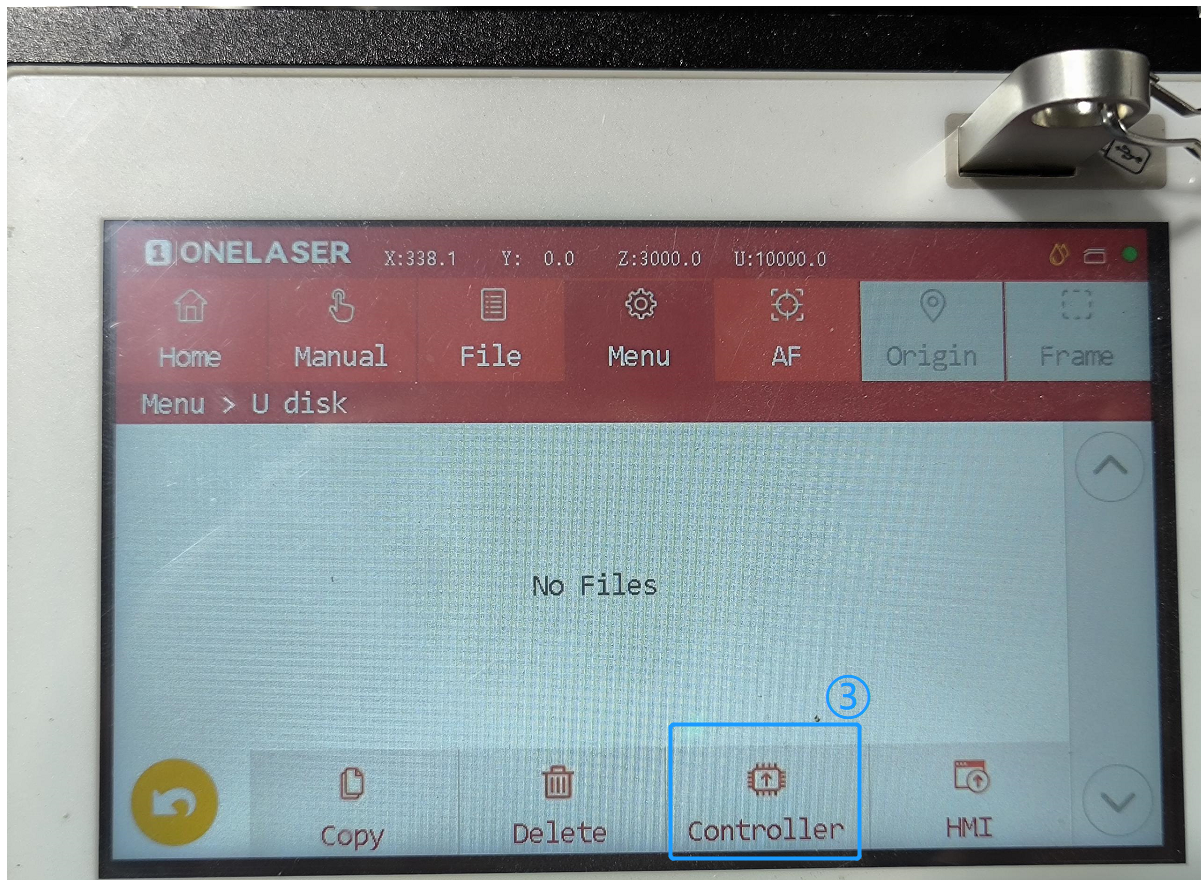

c.ClickMenu→U disk→Controller

d. Wait for the update→see the successful prompt→click close→firmware update is complete→reboot the device and wait for the reset to be completed

B. Updating in software (RDWorks)

a. Connecting devices and RDWorks→Config→System setting→Controller→Read→Upgrade firmware
b. Select the firmware we provide and open it

c. Wait for the update to complete → click OK when prompted successfully





d. Confirm that the update on the panel has been completed, click Close and then restart the device and wait for the reset to be completed
