Laser Replacement

Laser Replacement


Notes
Note: 1.The following operations should be performed after power disconnection.
          2.Please keep the removed screws properly to avoid loss.

Disassembly of the Enclosure

  • Both XT and XRF models require disassembly of the casing

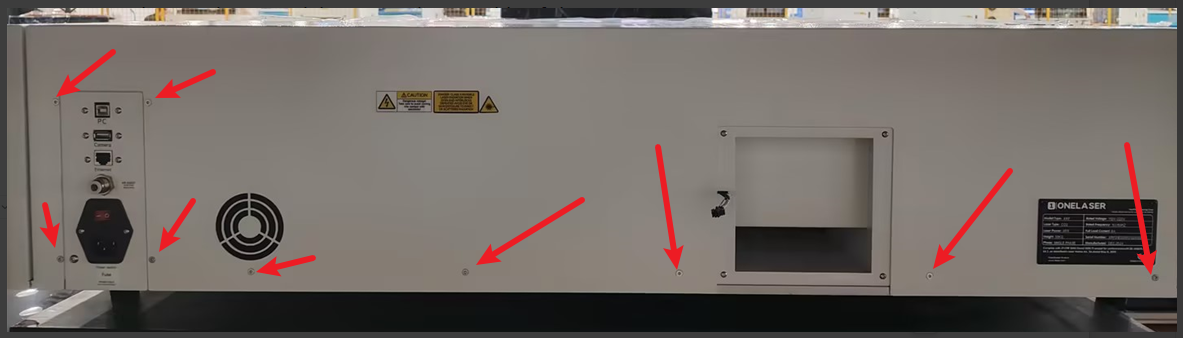

  • Use an M2 hex wrench to remove the screws on the rear cover of the device, and then take off the rear cover.

    Glass Tube Replacement (XT)

    1. Tools Required

    Hex wrench, steel ruler, water pump, utility knife

    2. Drain the Water Tank

    ①. Unscrew the water tank cap counterclockwise.                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       ②. Use a water pump to drain the water from the water tank.

    3. Disassembly of the Glass Tube

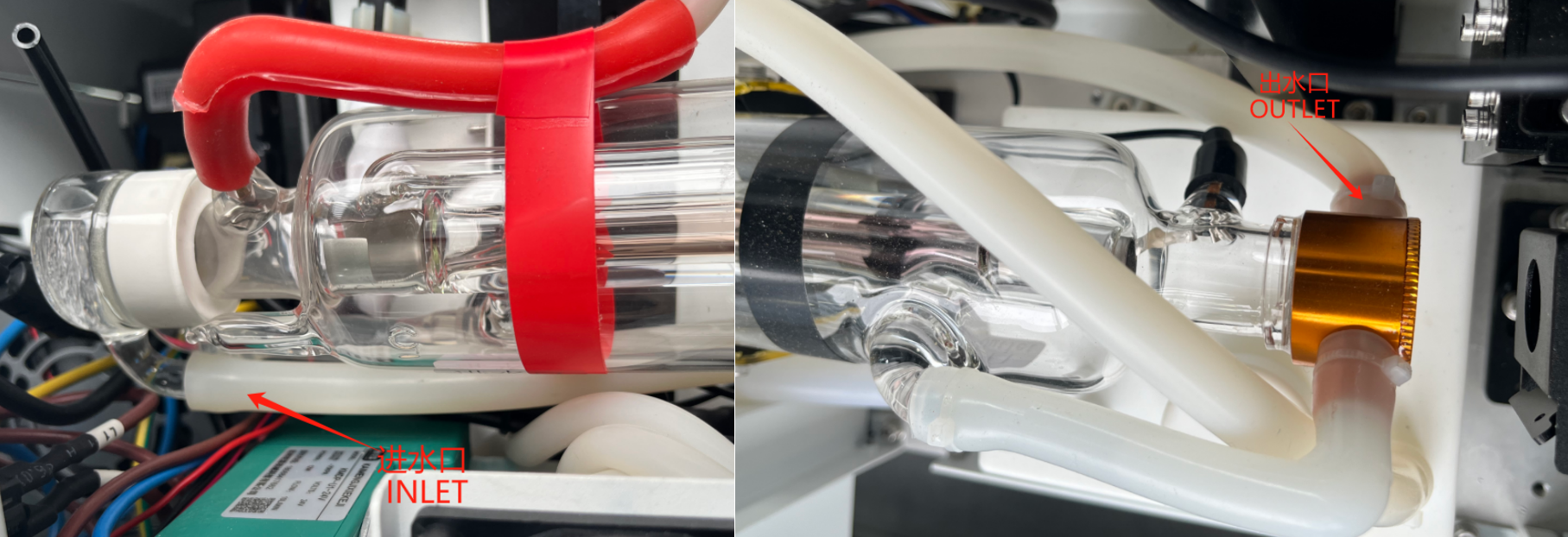

    ①. Measure the distance from the glass tube to Mirror 1 using a steel ruler, and record it.                                                                                                                                                                                                                                                                                                                                                                                                            ②. Unscrew the positive and negative electrode wires counterclockwise.                                                                                                                                                                                                                                                                                                                                                                                               ③. Use a utility knife to cut the zip ties at the water inlet and outlet, and then remove the water pipes from the laser.                                                                                                                                                                                                                                                                                                                   ④. Remove the two screws securing the laser, and then take out the laser.

    4. Install glass tube

    ①.Place the laser on the laser holder and adjust the distance from the laser to Mirror 1 (based on the recorded distance during disassembly).

    ②.Tighten the tape while using screws to secure the laser

    ③Connect the inlet and outlet water pipes to the laser and secure them with zip ties.

    ④Reconnect the positive and negative electrode wires.

    ⑤.Adjust the optical path, refer to the [Optical Path Adjustment Tutorial].

    RF Tube Replacement (XRF)

    1. Tools Required

    Hex wrench, Phillips screwdriver

    2.Disassembly of the RF Tube

    ①.Unplug the power cable, fan power cable, and signal cable.                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ②.Rotate counterclockwise to remove the beam expander                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  ③.Remove the screws securing the RF tube, and then take out the RF tube.                                                                                                                                                                                                                                                                                                                                                                   .                                                                                     ④.Use a hex wrench to unscrew the beam expander mirror holder.

    3.Installation of the RF Tube

    ①.Install the beam expander mirror holder onto the new RF tube

    ②.Secure the RF tube to the mounting bracket.

    ③.Reconnect the power cable, fan power cable, and signal cable to the RF tube.

    ④.Install the beam expander

    ⑤.Adjust the optical path, refer to the Optical Path Adjustment Tutorial.
